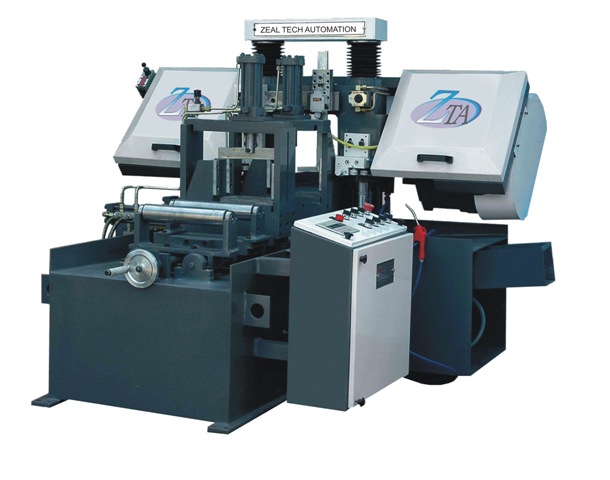

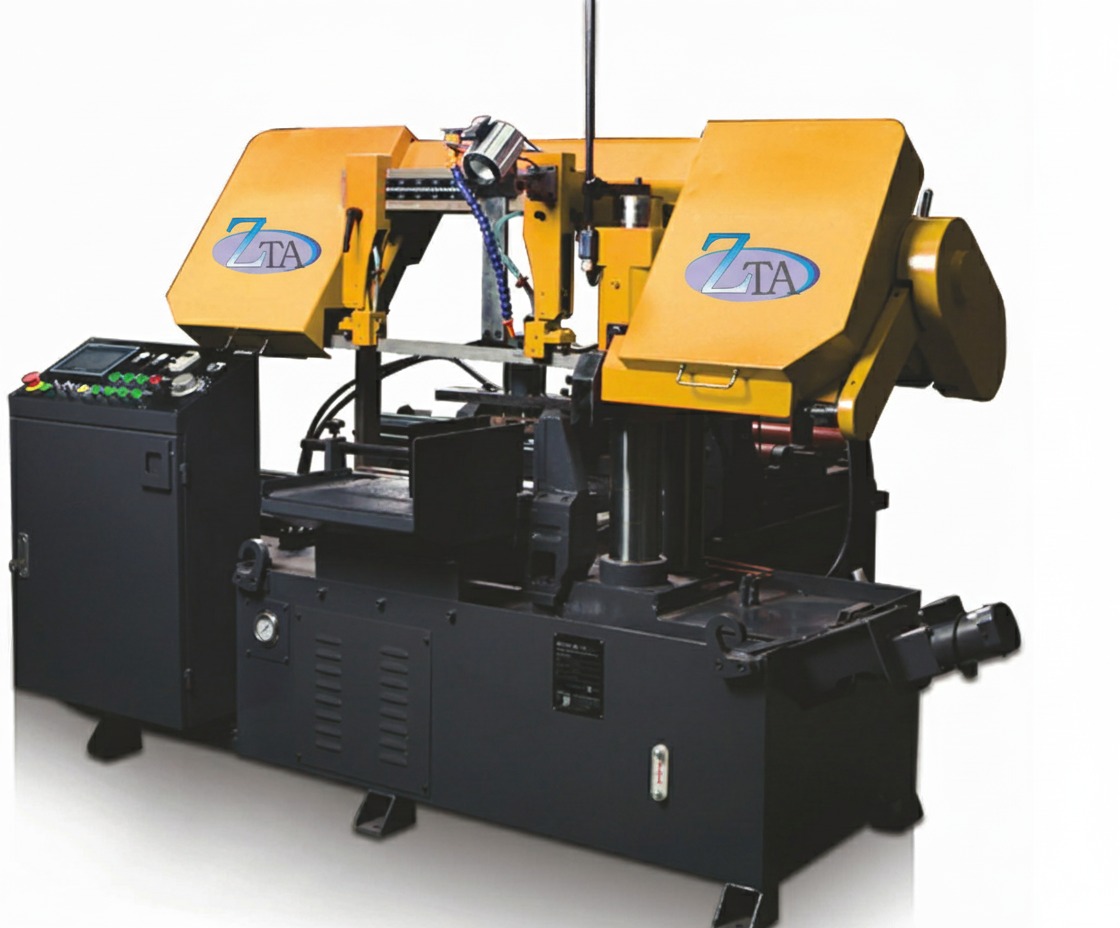

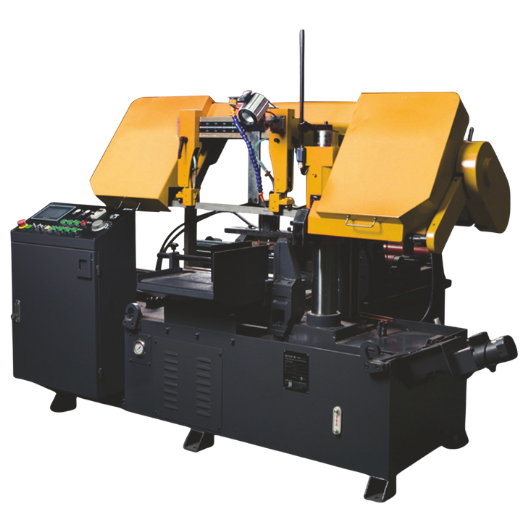

Horizontal Band Saw
Fully & Semi-Automatic High-Performance Cutting
Designed with a robust, precision-engineered structure to ensure high-performance cutting capabilities in demanding industrial environments. Built for stability, durability, and maximum efficiency.
Silent Features
Main Saw Frame
Mounted on vertically hardened ground with hard chrome-plated columns for stability.
Cutting Feed
Infinitely variable, providing controlled adjustments for optimal performance.
Cutting Arm
Rapid up-down motion powered by hydraulic cylinders for quick operation.
Auto Height Control
Fast-approach bar sensor for precise and automated height adjustments.
Blade Guidance
Guided by two graded cast iron wheels; includes carbide guides and roller bearings.
Hydraulic Vise
Dual-vise, shuttle-type automatic feed with full-stroke clamping.
Gearbox & Power
Heavy-duty reduction gearbox for high torque; PLC-controlled electrical panel.
Coolant & Chips
Inbuilt tank with 3-way cooling; automatic chip conveyor and power wire brush.
Safety Systems
Auto shut-off for open doors, blade stalling, or breakage detection.
Standard Models
| Model | Specifications |
| H320HA | Ø 320 (400W X 320H)mm | 4HP Saw | 2HP Hyd. | Speed: 20-90 m/min |
| H400HA | Ø 400 (400W X 400H)mm | 5HP Saw | 2HP Hyd. | Speed: 20-90 m/min |
| H500HA | Ø 500 (500W X 500H)mm | 7.5HP Saw | 2HP Hyd. | Speed: 20-90 m/min |
Silent Features
Torsion Free
Heavy-duty Fabricated Structure of Machine for vibration-free operation.
Precision Guiding
Main Saw frame guided on Vertical Hardened Ground and Hard chrome plated columns.
Auto Height Stop
Automatic height stop arrangement of cutting Arm after completion of cut.
Blade System
Tungsten Carbide faces Blade Guides with Hydraulic Blade Tension Arrangement.
Clamping
Hydraulic Operated job Clamping Main Vice for secure material hold.
Control
Electrical Control Panel with RLC, high-quality switch gears, and VFD speed control.
Maintenance
Separate Hydraulic Power pack with gauges & oil level indicator for easy check.
Models Available
H-280, H-350, H-400, H-40/60, H-40/70
