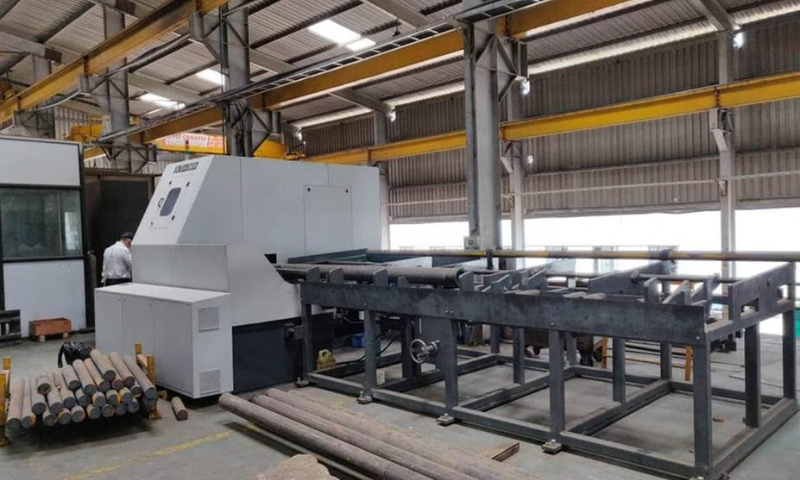

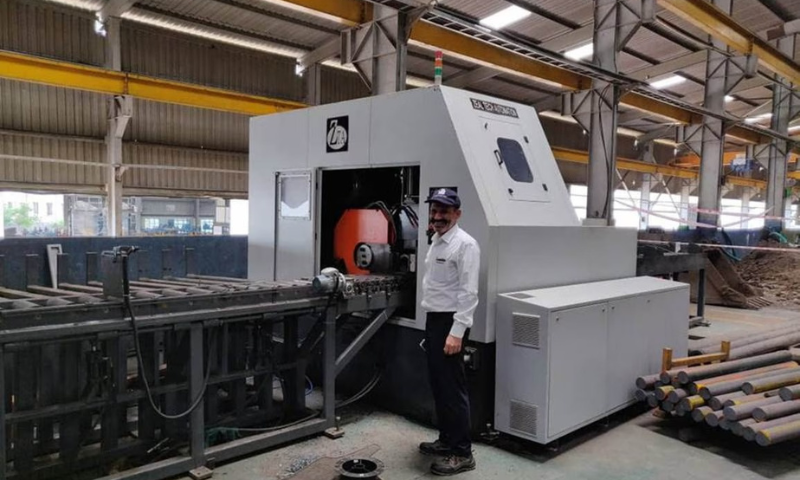

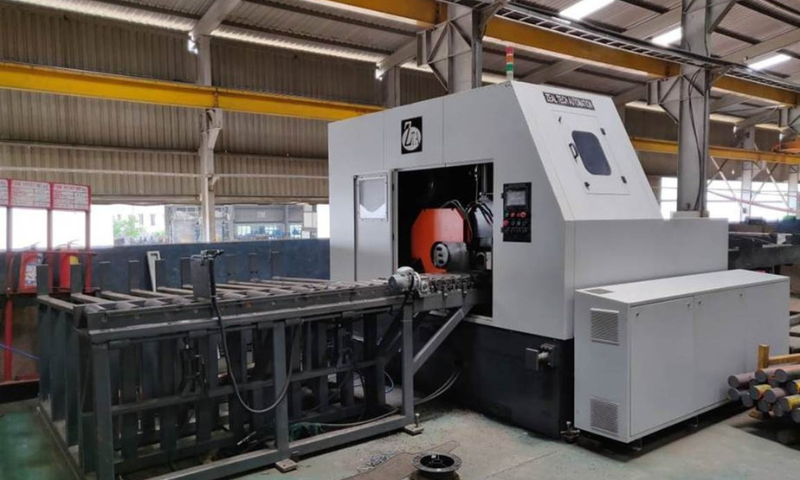

SONIC FANC-200
Massive Capacity Fully Automatic NC Circular Saw
The titan of circular saws, built for extreme heavy-duty cutting. With a capacity up to 200mm and a 50 HP motor, it handles large solid bars with absolute stability.
| Round Bars Capacity | 60 - 200 mm |
| Square Bars Capacity | 60 - 160 mm |
| Cut Length | 10 - 3000 mm |
| Crop-Cut Length | 10 - 50 mm |
| Remnant Length | 80 mm |
| Circular Saw Cutter | 560 / 630 mm (TCT/HSS) |
| Cutting Speed | 30 - 180 m/min |
| Saw Motor | 50 HP (3 Phase) |
| Power Supply | 415V | 3ph | 50Hz |
1) Versatile Material Processing
Suitable for various material grades and sections, including solid materials, tubes, squares, rectangles, hexagons, and other profile sections.
2) Torsion-Free Construction
Heavy-duty, fabricated machine structure for enhanced stability.
3) Precise Cutting Feed
Infinitely variable cutting feed controlled via ball screw servo motor.
4) Variable Cutting Speed
Equipped with a Variable Frequency Drive (VFD) for adjustable cutting speeds.
5) Accurate Indexing
Job indexing with ±0.05* mm accuracy through ball screw servo arrangement. (* on bright bars).
6) Length Measurement
Cut length measured by PLC with servo drive for high precision
7) Multiple Shuttle Index Stroke
Enables cutting lengths up to 3000 mm. User-Friendly PLC Control: Touch screen HMI for easy operation without the need for programming knowledge.
8) Self-Diagnostic HMI
Built-in diagnostic features for troubleshooting, warnings, and alerts.
9) Auto and Manual Modes
Flexible operation modes for cycle sequence control.
10) Hydraulic Job Clamping
Horizontal and inclined vice for secure material clamping.
11) Heavy-Duty Gearbox
Robust reduction gearbox with precision linear motion guides for vibration-free cutting, optimizing cutter life and production.
12) Micro Mist Cooling System
Built-in, maintenance-free cooling system for consistent performance.
13) Separate Hydraulic Power Pack
Includes control valves, gauges, and oil level indicator for easy maintenance.
14) Free Lifting Mechanism
Reduces wear and tear on jaw liners and accommodates overbend bars up to 3 mm/mtr.
15) Precision Cutting Head
Horizontal Cutting Head.
16) Wire Brush
Automatically cleans chips from saw blades to maintain efficiency.
17) Carbide Blade Guides
Special carbide guides reduce blade wear and vibration, maximizing cutting precision and extending blade life. Automatic Trim & Crop Cuts: Automatic trimming and crop-cut end separator for efficient material handling.
18) Powered Chip Conveyor
Ensures smooth removal of chips during the cutting process.
19) Auto Lubrication System
PLC-controlled lubrication unit for periodic maintenance of all machine slides.
- 1) UPS (Uninterruptible Power Supply) Ensures uninterrupted operation during power outages, protecting the machine from unexpected downtime.
- 2) Smart Machine (Ethernet) Enables remote monitoring and diagnostics via Ethernet for enhanced operational efficiency and real-time performance tracking.
- 3) Mini / Motorized Unloader Options for automatic unloading systems (mini or motorized) for smoother material handling and reduced manual labor.
- 4) Fume Catcher Provides effective extraction of fumes and debris during the cutting process, ensuring a cleaner and safer working environment.
- 5) Double Mist Cooling Unit Dual mist cooling system for enhanced cooling and extended blade life, particularly useful for high-volume operations.
- 6) Bucket / Flapper Auto Loader Facilitates efficient material loading with options for bucket or flapper loaders, optimizing production speed and minimizing manual handling.
- 7) Third Vice for reduced remnant length.
