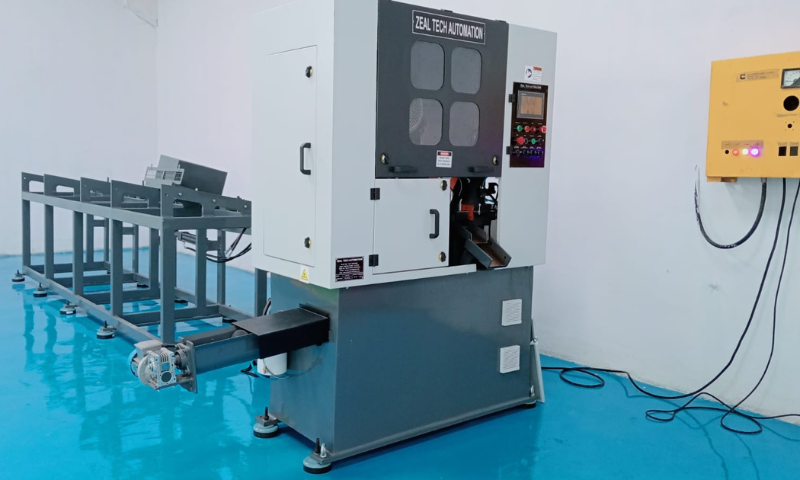

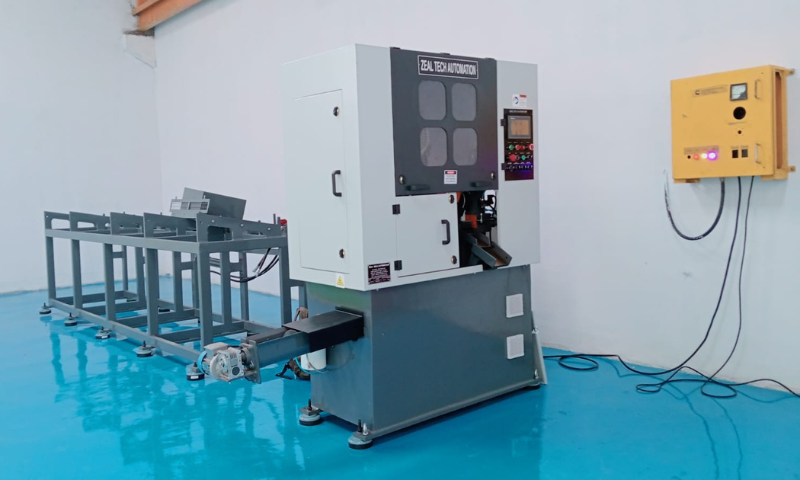

SONIC FANC-60
Fully Automatic High-Precision Circular Saw
The Sonic FANC-60 is a compact powerhouse designed for precision cutting of smaller diameter bars (10–60mm). Featuring a high-speed 7.5 HP motor and servo-driven accuracy, it is perfect for high-volume production.
| Round Bars | 10 – 60 mm |
| Square Bars | 10 – 40 mm |
| Cut Length | 10 – 3000 mm |
| Crop-Cut Length | 10 – 50 mm |
| Remnant Length | 65 mm |
| Circular Saw Cutter | 250 mm (Diameter) (TCT/HSS) |
| Cutting Speed | 20 – 180 m/min |
| Saw Motor | 7.5 HP (3 Phase) |
| Power Supply | 415V | 3ph | 50Hz |
1) Versatile Material Processing
Suitable for various material grades and sections, including solid materials, tubes, squares, rectangles, hexagons, and other profile sections.
2) Torsion-Free Construction
Heavy-duty, fabricated machine structure for enhanced stability.
3) Precise Cutting Feed
Infinitely variable cutting feed controlled via ball screw servo motor.
4) Variable Cutting Speed
Equipped with a Variable Frequency Drive (VFD) for adjustable cutting speeds.
5) Accurate Indexing
Job indexing with ±0.05 mm accuracy through ball screw servo motor arrangement.
6) Length Measurement
Cut length measured by PLC with servo drive for high precision.
7) Multiple Shuttle Index Stroke
Enables cutting lengths up to 3000 mm. Touch screen HMI for easy operation.
8) Self-Diagnostic HMI
Built-in diagnostic features for troubleshooting, warnings, and alerts.
9) Auto and Manual Modes
Flexible operation modes for cycle sequence control.
10) Hydraulic Job Clamping
Horizontal and inclined vice for secure material clamping.
11) Heavy-Duty Gearbox
Robust reduction gearbox with precision guides for vibration-free cutting.
12) Micro Mist Cooling System
Built-in, maintenance-free cooling system for consistent performance.
13) Separate Hydraulic Power Pack
Includes control valves and oil level indicator for easy maintenance.
14) Free Lifting Mechanism
Reduces wear and tear on jaw liners and accommodates overbend bars.
15) Precision Cutting Head
45° inclined guide ensures perfect rake angle and high cutting accuracy.
16) Wire Brush
Automatically cleans chips from saw blades to maintain cutting efficiency.
17) Carbide Blade Guides
Special carbide guides reduce blade wear and vibration.
18) Powered Chip Conveyor
Ensures smooth removal of chips during the cutting process.
19) Auto Lubrication System
PLC-controlled lubrication unit for periodic maintenance of all slides.
- 1) UPSEnsures uninterrupted operation during power outages.
- 2) Smart MachineEnables remote monitoring and diagnostics via Ethernet.
- 3) Motorized UnloaderOptions for automatic unloading systems.
- 4) Fume CatcherExtraction of fumes and debris for a cleaner environment.
- 5) Double Mist CoolingDual mist system for extended blade life.
- 6) Auto LoaderFacilitates efficient material loading (Bucket/Flapper).
- 7) Third ViceThird vice for reduced remnant length.
