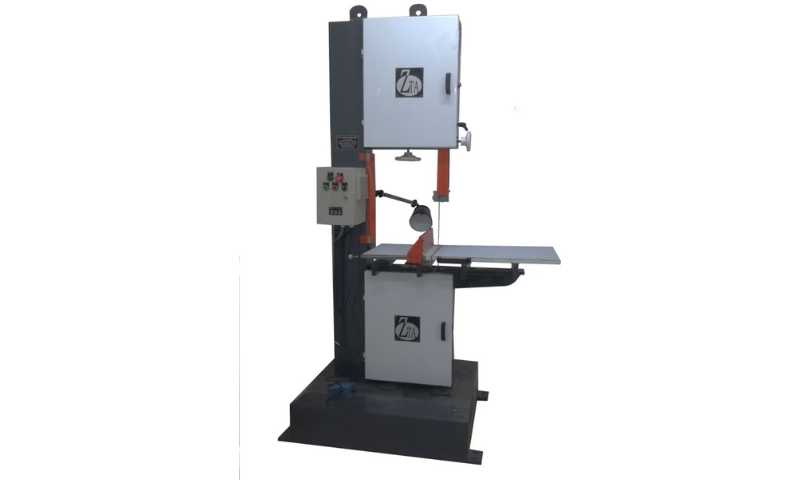

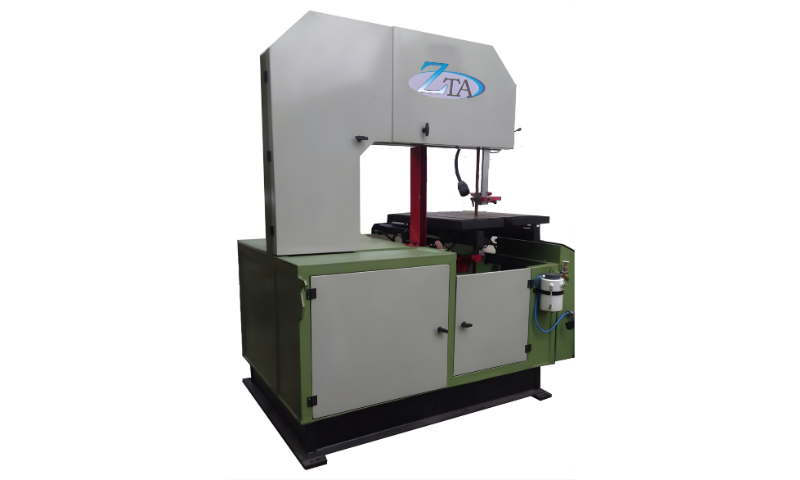

Automatic Hydraulic-Work Table Vertical Band Saw
Precision Engineering for Heavy-Duty Cutting
Featuring torsion-free construction and a calibrated hydraulic system, our vertical band saws are built for consistency and long-term industrial reliability.
Hydraulic Table Travel
A stress-relieved heavy duty fabricated table guided on two hard chrome plated guide bars or on imported linear guideways, with infinitely variable hydraulic feed 0–150 mm/min controlled through a feed control valve.
Blade Tensioning
Standard hydraulic blade tensioning — the most important factor for consistent blade life. Calibrated to the desired tension so it never changes during operation, a feature manual tensioning cannot match.
Heavy-Duty Construction
Torsion-free construction of heavy-duty fabricated structure. Cutting blade guided on two wheels of graded cast iron.
Safety Mechanisms
Automatic blade stop when blade breaks. Motor protection ensured with thermal overload relay and MCB for high-performance safety.
Drive & Torque
Heavy duty reduction gearbox for heavy cutting torque and step pulley for band speed selections to handle various materials.
Functional Details
Separate hydraulic power pack for easy maintenance, tungsten carbide face blade guides, and height-adjustable top blade guide.
Control & Cooling
Electrical control panel with high quality switchgear and inbuilt mist coolant tank for efficient blade cooling.
- Torsion-free construction of heavy-duty fabricated structure
- Cutting tool guided on two wheels of graded cast iron
- Manual blade tension arrangement
- Fixed work table travel
- Tungsten carbide face blade guides
- Heavy duty reduction gearbox for heavy cutting torque
- Electrical control panel with high quality switchgear
- Manual arrangement of upper guide adjustment
- Separate control panel
- VFD pulley for band speed selections
| Model | Capacity (W×H) | Saw Motor | Table Size | Cutting Speed | Wheel Dia |
|---|---|---|---|---|---|
| 100 V2 | 200 × 100 mm | 3 HP | 400 × 400 mm | 20–100 m/min | 360 mm |
| 100 V3 | 300 × 100 mm | 3 HP | 600 × 600 mm | 20–100 m/min | 360 mm |
| 200 V2 | 400 × 200 mm | 5 HP | 700 × 700 mm | 15–1500 m/min | 625 mm |
| 200 V3 | 600 × 200 mm | 5 HP | 700 × 700 mm | 15–1500 m/min | 625 mm |
| 300 V2 | 600 × 300 mm | 5 HP | 900 × 900 mm | 15–1500 m/min | 625 mm |
| 300 V3 | 900 × 300 mm | 7.5 HP | 900 × 900 mm | 15–1500 m/min | 925 mm |
